Simplifying your Supply Chain

As a vertically integrated manufacturer of custom precision electrical steel laminations, El-Met Parts provides a complete suite of services for Clients across many industries.  From the initial sourcing of raw materials to prototyping and manufacturing finished stamped electrical steel lamination products, El-Met Parts is a single source supplier of choice.

Core Services

Click on a Core Service to learn more about it.

Lamination Stamping

Precision
Slitting

Annealing

Epoxy
Coating

Tool
Room

Value-Added Services

In addition to our Core Services, we offer these value-added services:

Prototyping and Short Runs
Blanking
Welding Center
Steel Storage
Engineering & Design
Assembly
Prototyping and Short Runs
Blanking
Welding Center
Steel Storage
Engineering & Design
Assembly
CONTACT US FOR MORE INFORMATION ABOUT OUR VALUE-ADDED SERVICES

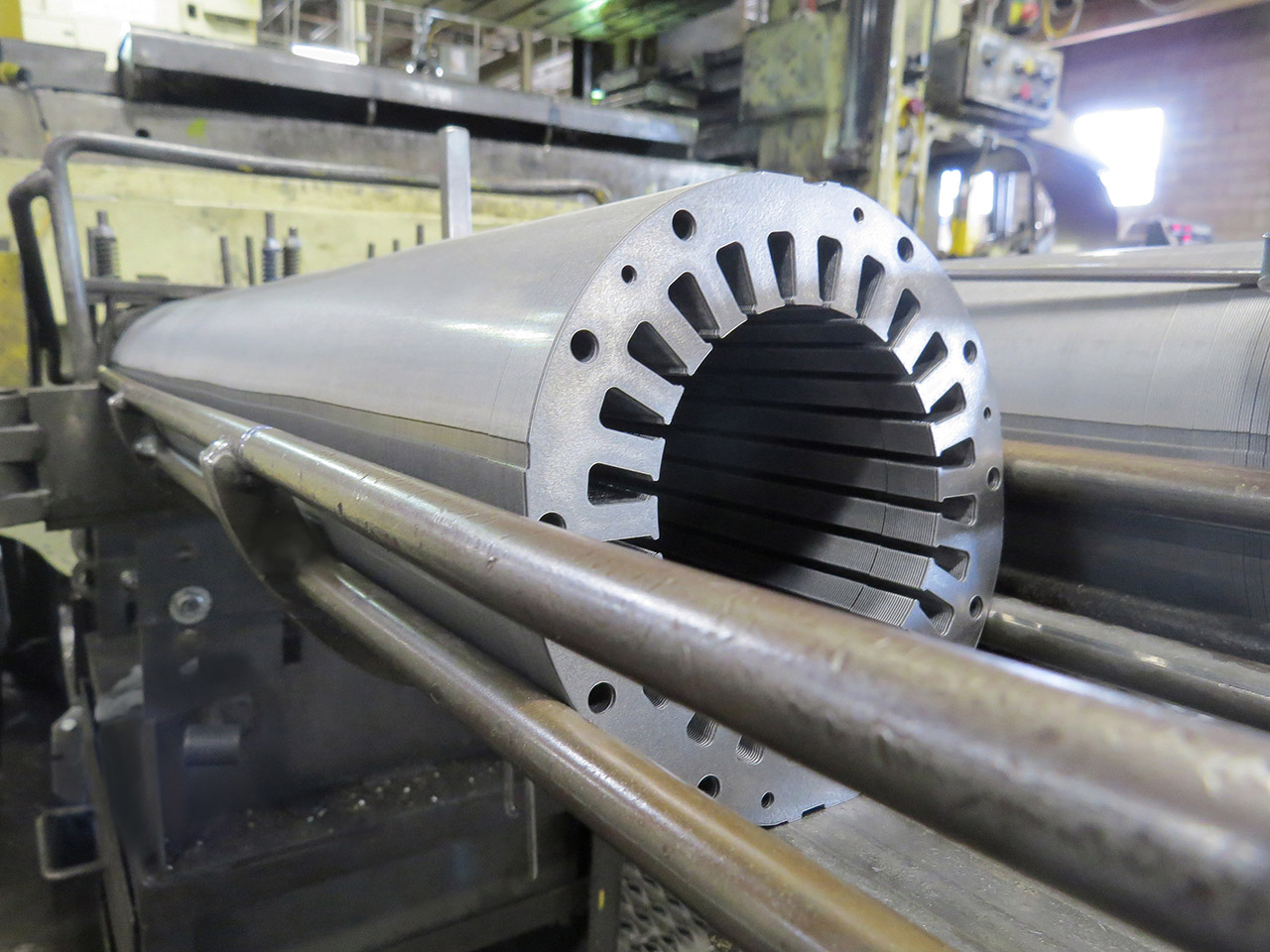

Lamination Stamping

Our lamination presses ranging from 30 to 300-ton capacity stamp custom electrical steel laminations in a variety of grades including Cold Rolled Motor Lamination Steel, Commercial Quality Steel, Non-Oriented Steel, Grain Oriented Steel and Thin Gauge Electrical Steel.

We partner with leading toolmakers around the globe to construct our progressive carbide dies. By leveraging the latest die manufacturing technologies, we provide our clients with the unsurpassed precision and quality they expect from our finished products.

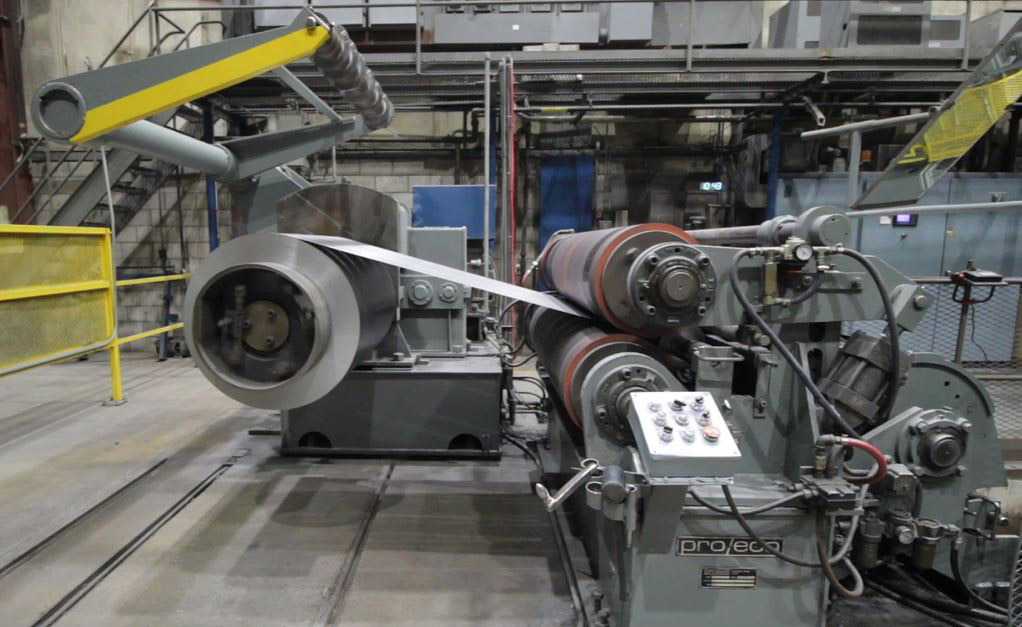

Precision Slitting

El-Met Parts’ in-house precision slitting department slits master coils of electrical steel into smaller cuts for use in our custom lamination stamping process. We also offer precision-slitting services of electrical steel in thicknesses from 0.008” to 0.048” and widths from 0.750” to 48.00” for clients who require custom specifications for their own manufacturing.

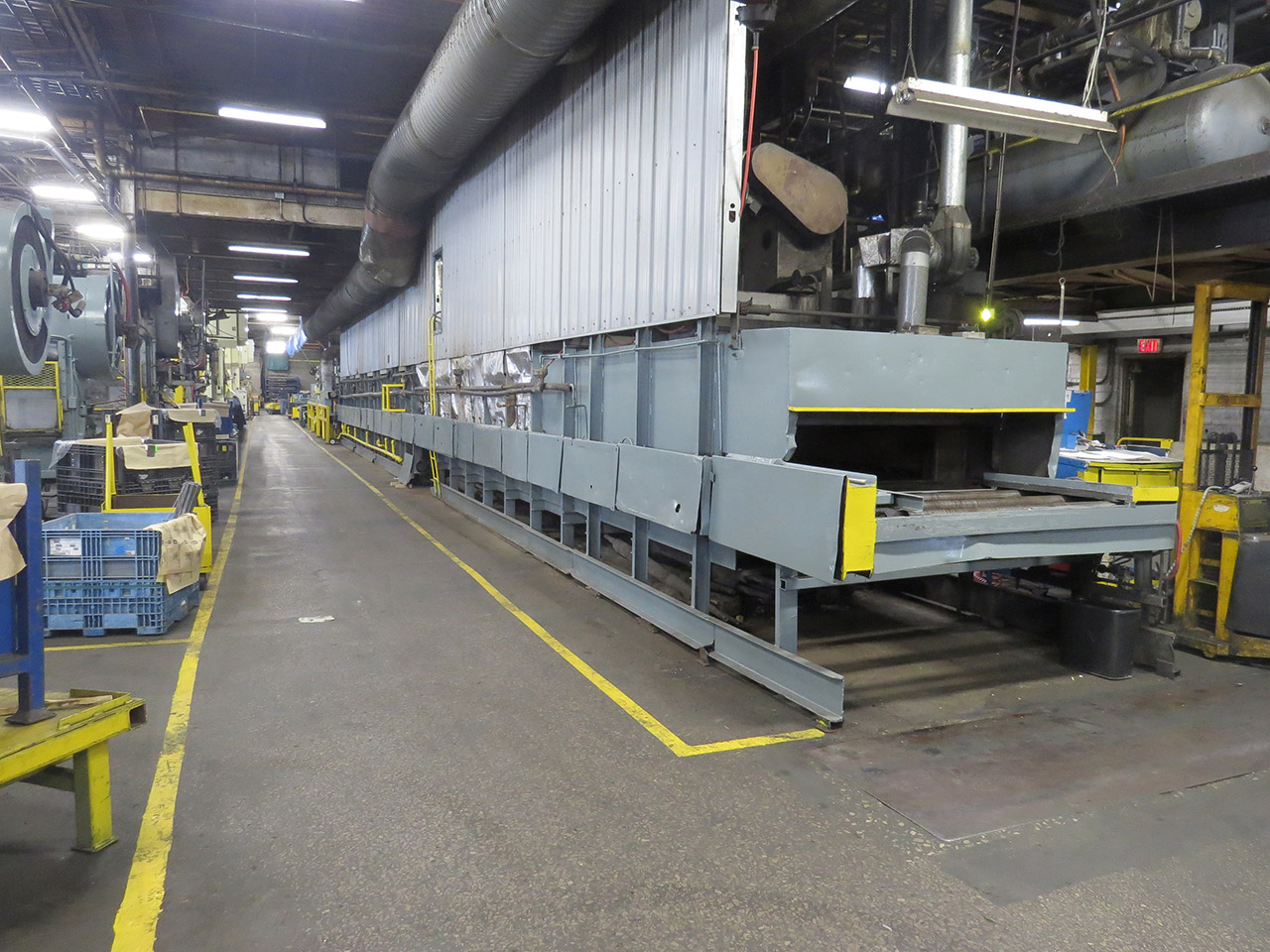

Annealing

El-Met Parts utilizes two continuous roller hearth annealing furnaces. Our furnaces run to our proprietary engineered specifications to develop the magnetic properties of electrical motor laminations and to reduce residual stress that is introduced to the electrical steel during the stamping process. Our capability of running various annealing cycles specifically aligned with the material applications affords El-Met Parts the ability to provide laminations to our customers with improved magnetic characteristics. While providing annealing services as part of our full-service manufacturing process we also provide custom annealing services for clients requiring the treatment of a variety of materials required for their own production processes.

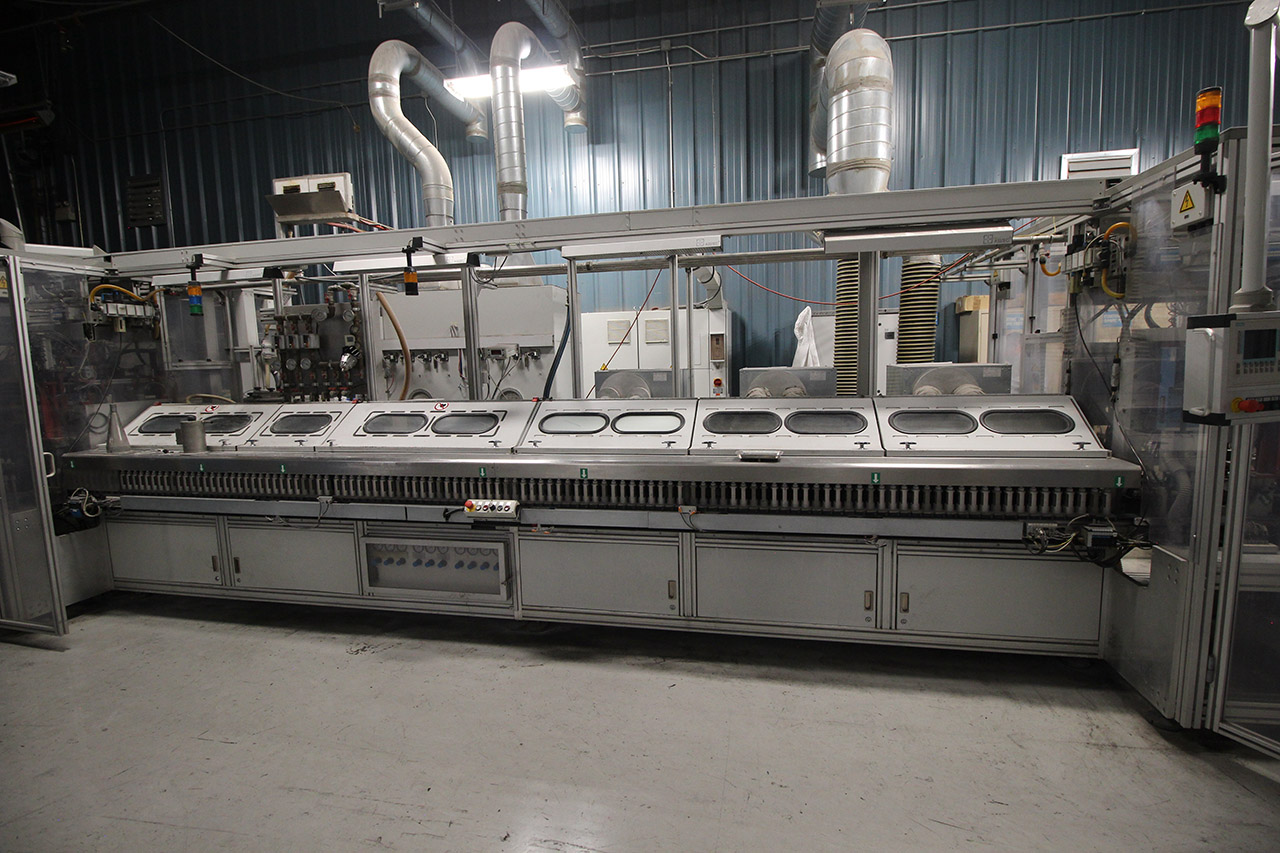

Epoxy-Coating

El-Met Parts insulates a variety of motor cores using an automated epoxy coating line. Our Electrostatic Fluidized Bed technology offers significant advantages over thermoplastic and paper insulations and provides superior electrical insulation properties along with corrosion and moisture resistance and thermal stability.

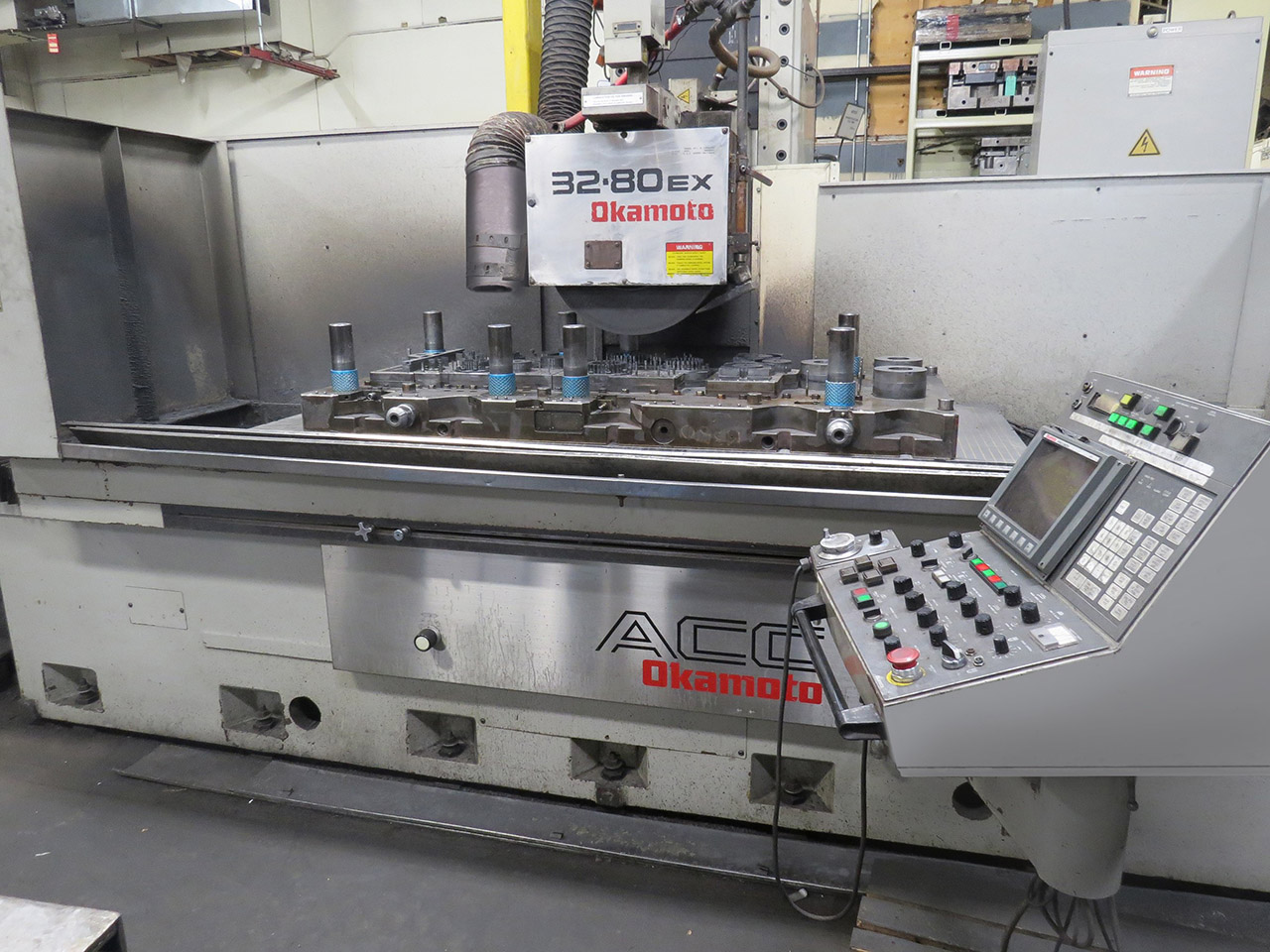

Tool Room

Our progressive carbide dies are manufactured under partnerships with leading global toolmakers who specialize in die construction. This approach provides us with access to the most up-to-date die technologies resulting in the highest quality products for our clients. Our onsite, full-service tool room allows us to maintain our dies to meet the exacting standards of quality and precision demanded by our customers.
